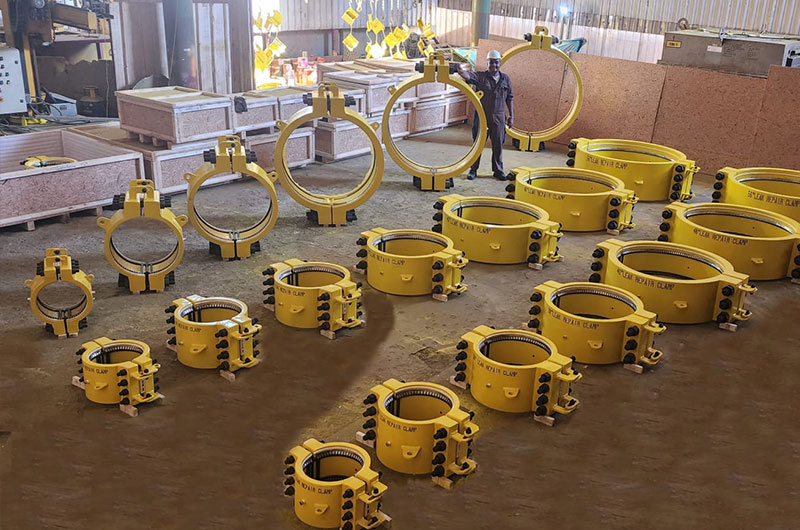

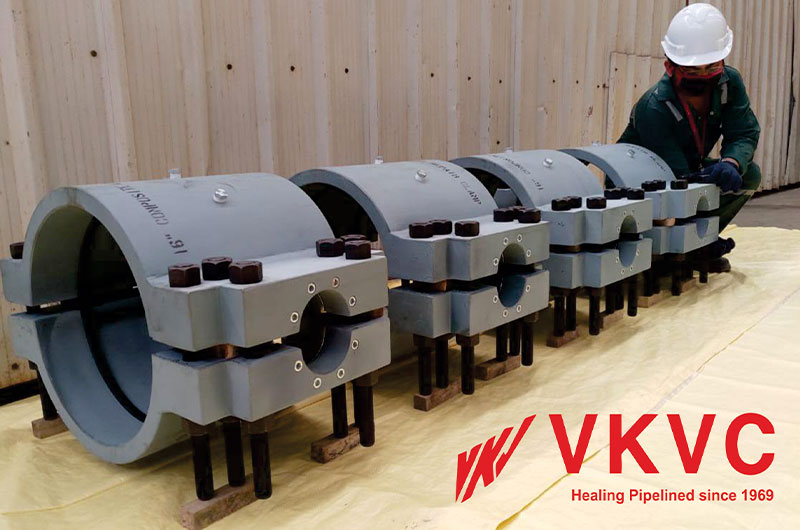

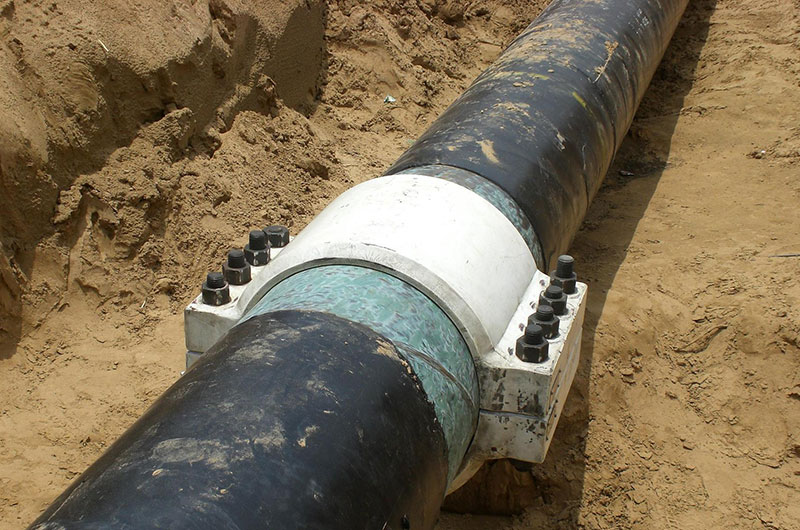

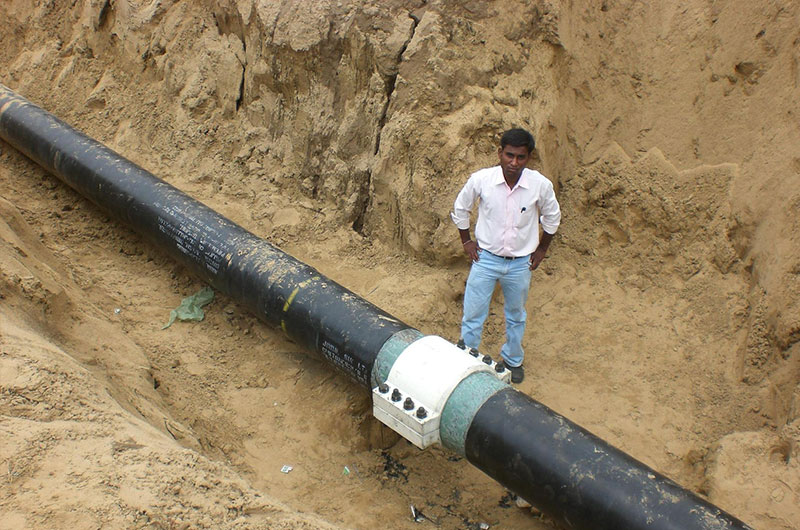

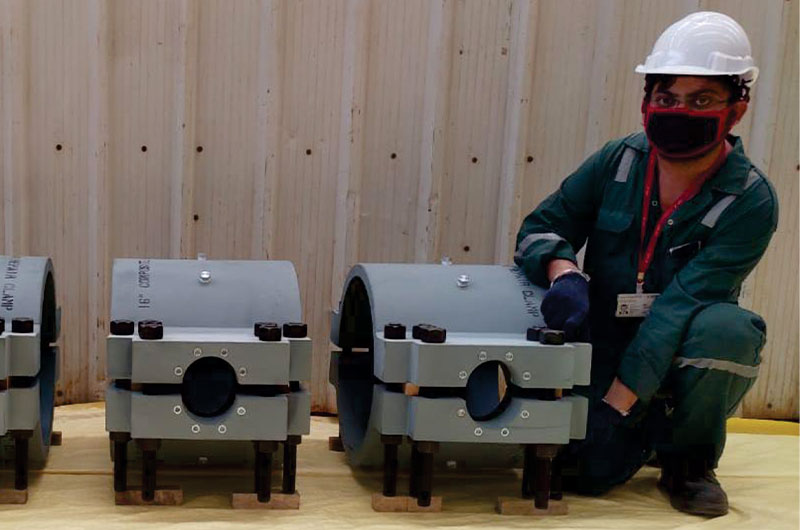

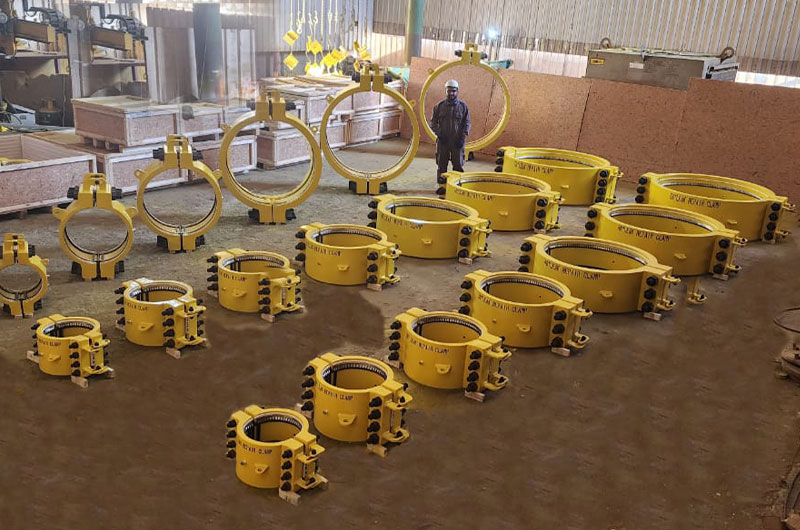

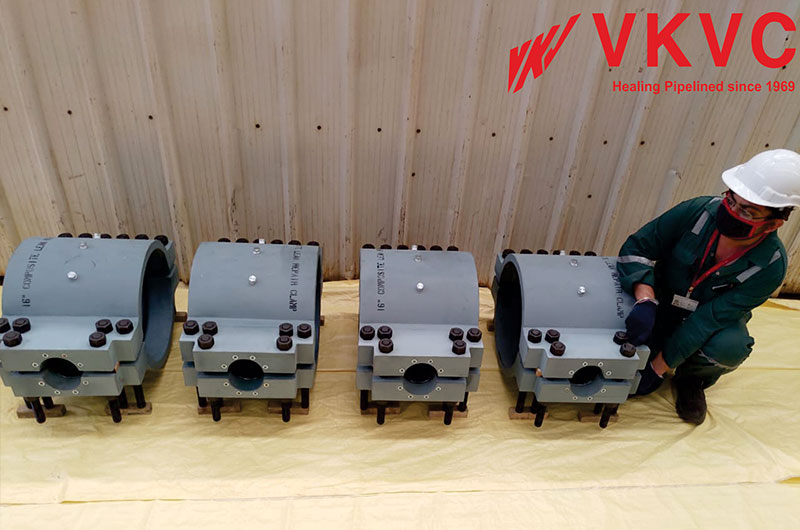

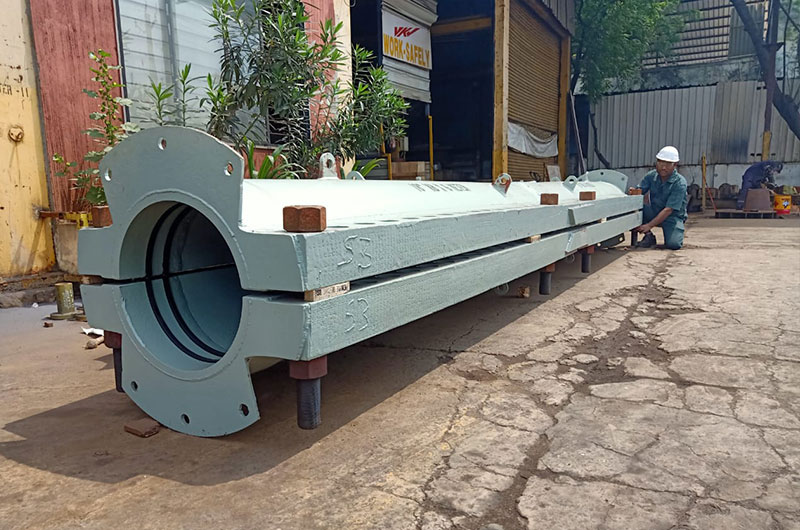

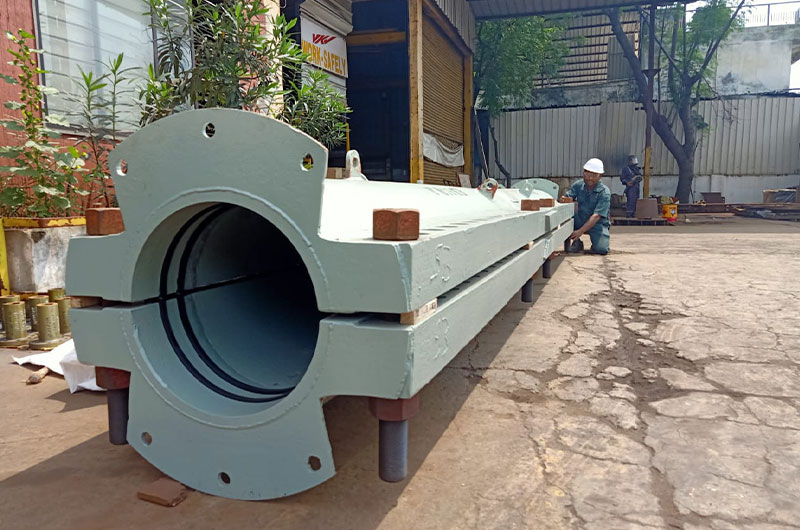

When Standard VKVC clamps are not suitable for your application, VKVC provides services to customize repair technologies. All clamps are designed, manufactured and fabricated in the VKVC facility with strict adherence to industry codes and specifications and quality control policy.
| 1 | Design Code | ASME Sec-VIII Div-1, ASME “U”, “U2” Stamp |
|---|---|---|
| 2 | Design Analysis | Finite Element Analysis |
| 3 | Material of Construction | ASTM A/SA 350 LF2 CL.1 OR 2, ASTM A/SA 105, ASTM A/SA 516 GR.70 ASTM A694 F GR.42/46/52/56/60/65/70 SS GR 304L OR 316L |
| 4 | Seals | In – House Moulded HNBR/Fluro Elastomer/FFKM (AED certified) |
| 5 | Factory Acceptance Test | Pneumatic Body Test, Strip test, Vacuum test & Function Test. |
| 6 | For Sub-Sea / Marine / Offshore Application | VKVC Provides Special Marine Coating and weld Overlay as Specified by Client |
Note: VKVC extends support with certified Engineers available for onshore installation supervision, guaranteeing a seamless implementation process.
