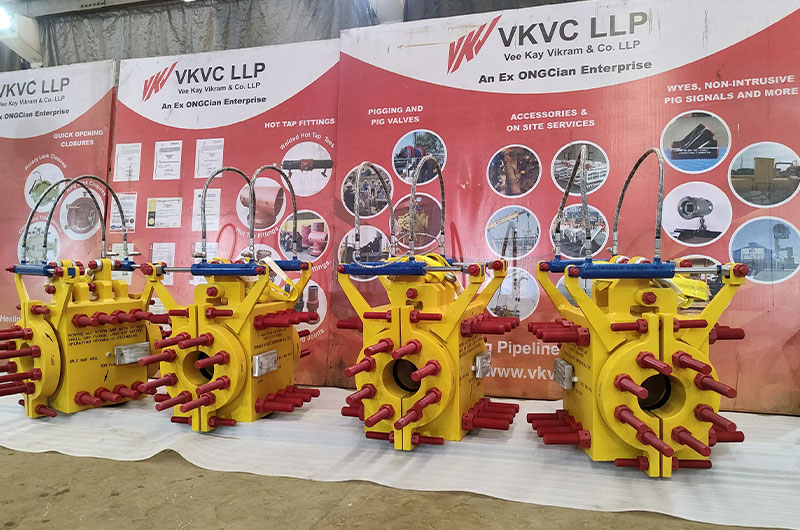

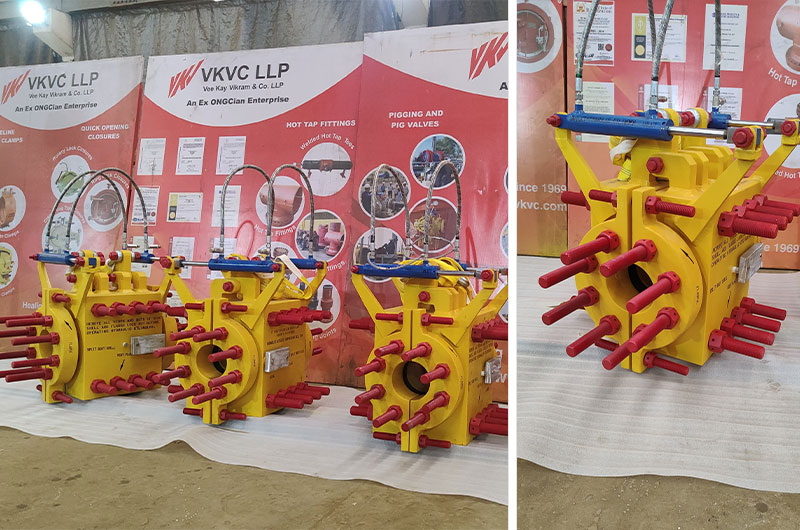

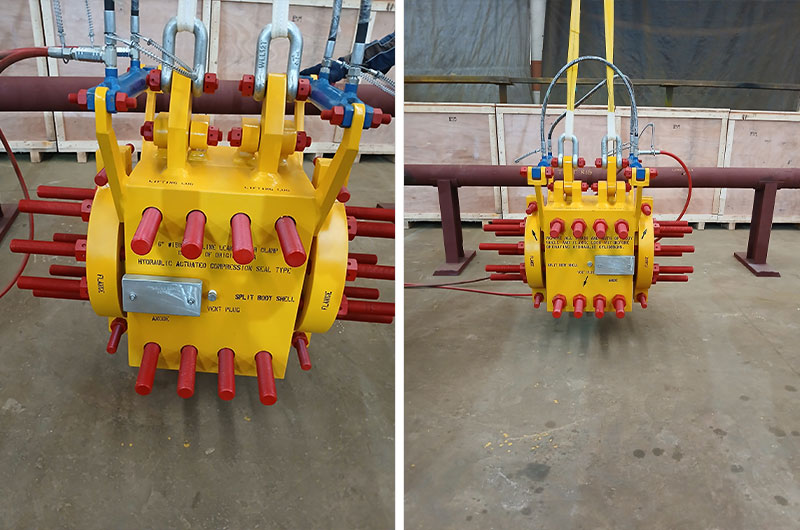

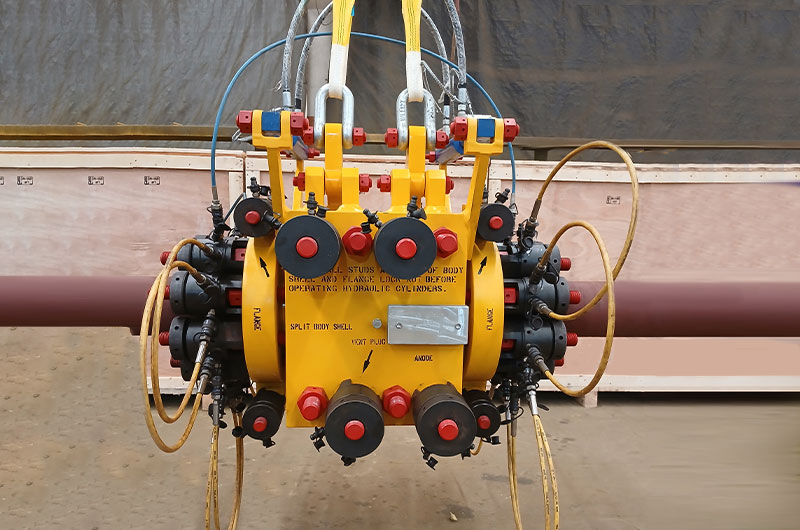

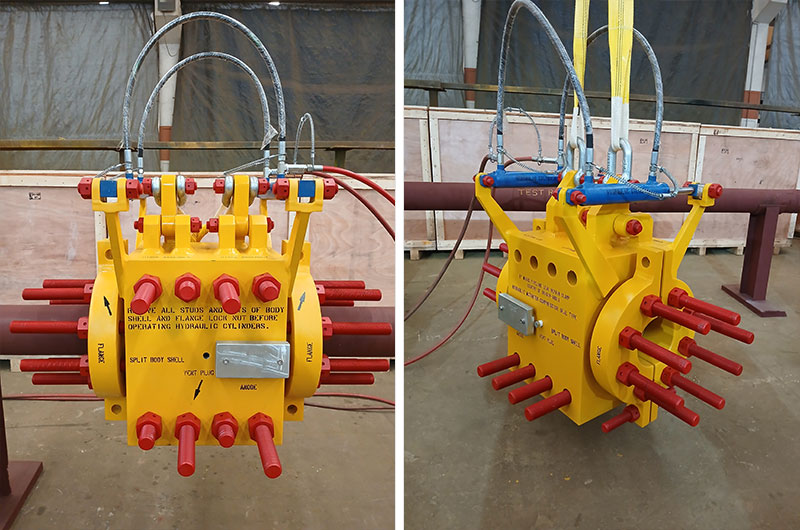

VKVC Sub-Sea Hydraulic clamps are specialized devices designed to secure and support various sub-sea components, such as umbilicals, risers, flowlines, and cables, in offshore oil and gas operations. They play a crucial role in maintaining the integrity and stability of sub-sea systems by preventing movement, reducing vibration, and mitigating fatigue damage.
| 1 | Design Code | ASME Sec-VIII Div-1, ASME “U”, “U2” Stamp |
|---|---|---|
| 2 | Design Analysis | Finite Element Analysis |
| 3 | Material of Construction | ASTM A105, ASTM A516 Gr.70 ASTM A36 OR ASTM A516 Gr.70 ASTM A 193 Gr. B7 and ASTM A 194 Gr. 2H respectively, all PTFE coated. |
| 4 | Seals | In – House Moulded HNBR/Fluro Elastomer/FFKM Other Material Options Available on Request. (AED certified) |
| 5 | Factory Acceptance Test | Pneumatic Body Test, Strip test, Vacuum test & Function Test Hydrotest. |
Note: VKVC extends support with certified Engineers available for Offshore installation supervision, guaranteeing a seamless implementation process.
