Sub-Sea Conventional Clamp

The sub-sea environment presents significant and multifaceted challenges for pipeline owners and operators. The inherent complexities and unpredictable nature of this underwater realm create a high-risk operating landscape marked by numerous uncertainties. Among the most critical concerns are the potential for pipeline leaks, which can have severe environmental, economic, and safety ramifications.

Recognizing the gravity of these challenges, VKVC has developed a line of robust sub-sea conventional clamps designed to provide a dependable and effective remedy for unforeseen leaks in sub-sea pipelines. Engineered with precision and manufactured to the highest standards, these clamps offer a reliable solution to address and mitigate the risks associated with pipeline integrity in this demanding environment.

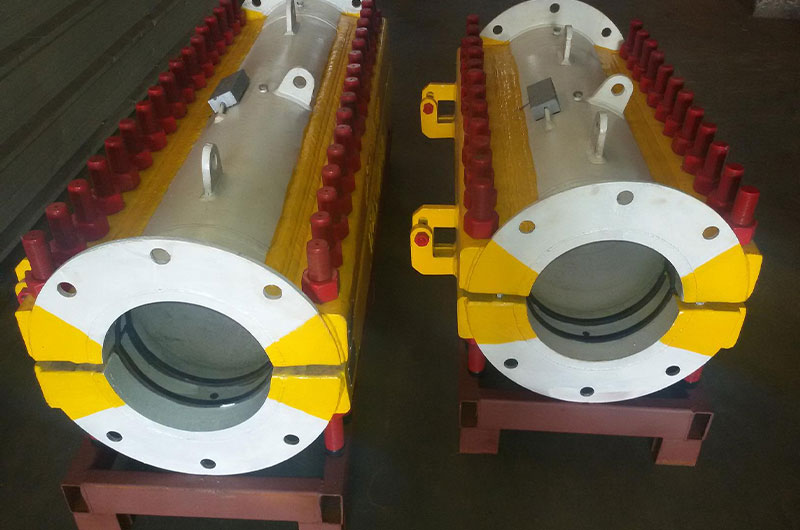

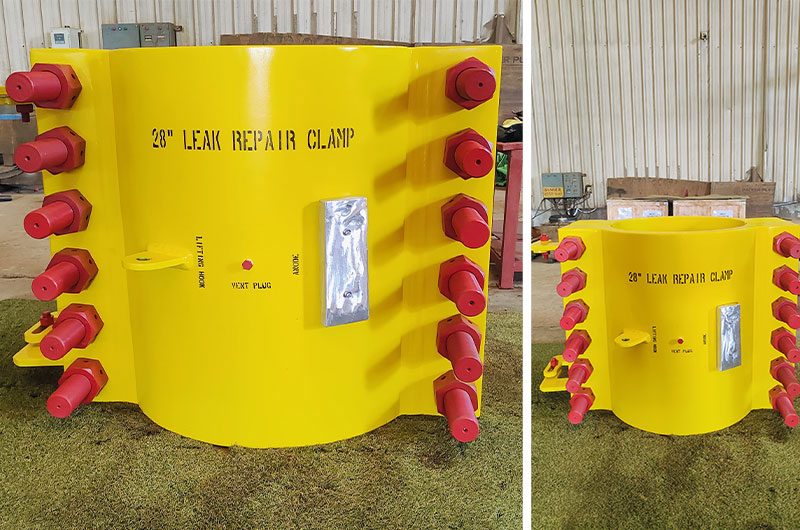

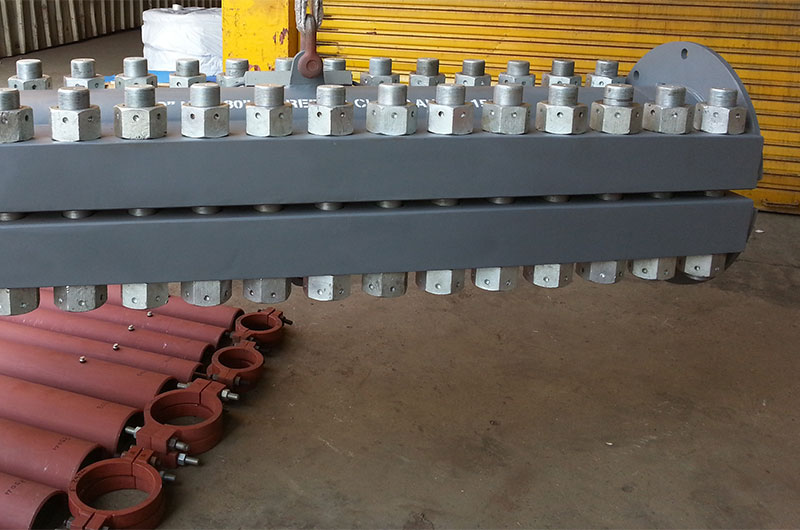

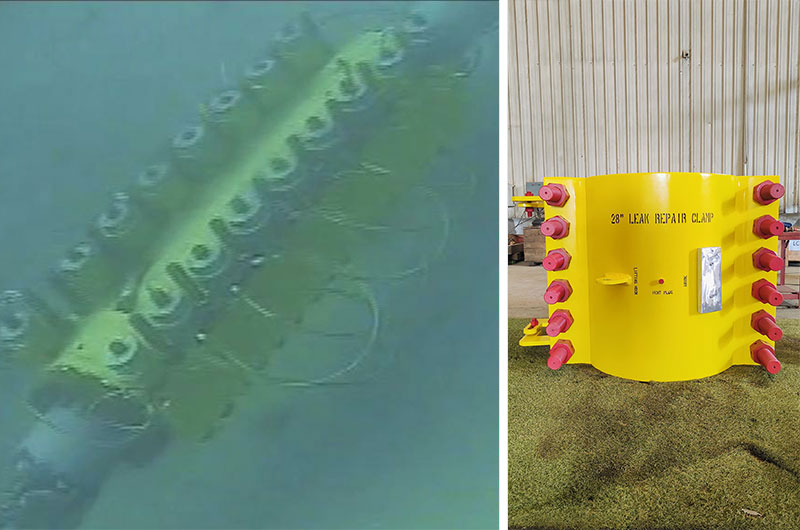

VKVC Sub-Sea Conventional Clamps have been developed for repair of oil and gas pipelines and infrastructure. Pressure Containment Clamps are designed to be installed on damaged or leaking pipelines, encapsulating the defect within the clamp body and regaining pressure integrity through mechanical seals engaging on the sound parent pipe.

Technical Specification

1 Design Code ASME Sec-VIII Div-1, ASME “U”, “U2” Stamp
2 Design Analysis Finite Element Analysis
3 Material of Construction ASTM A105, ASTM A516 Gr.70 ASTM A36 OR ASTM A516 Gr.70 ASTM A 193 Gr. B7 and ASTM A 194 Gr. 2H respectively, all PTFE coated.
4 Seals In – House Moulded HNBR/Fluro Elastomer/FFKM Other Material Options Available on Request. (AED certified)

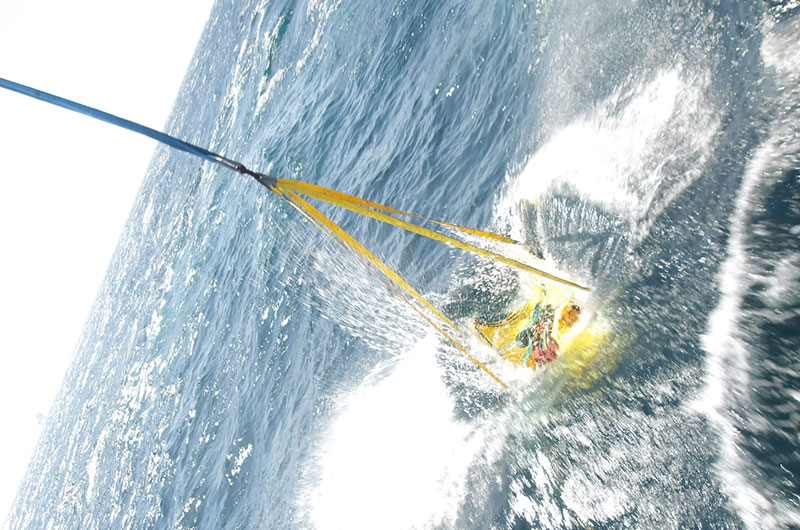

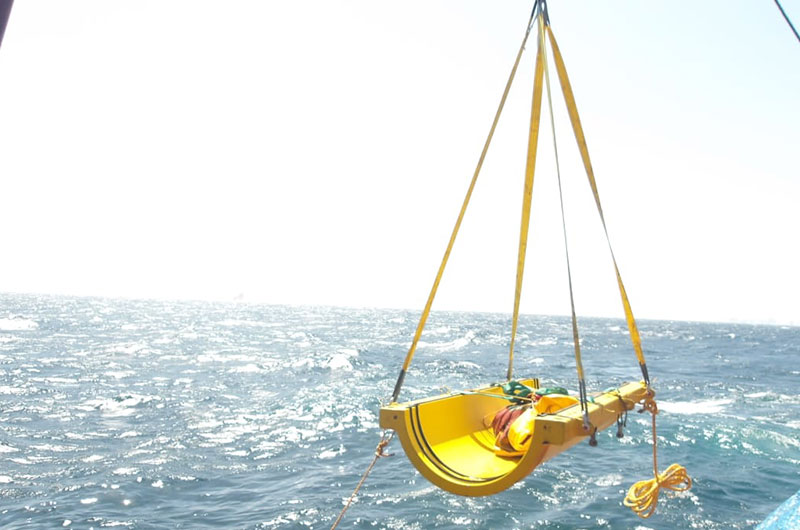

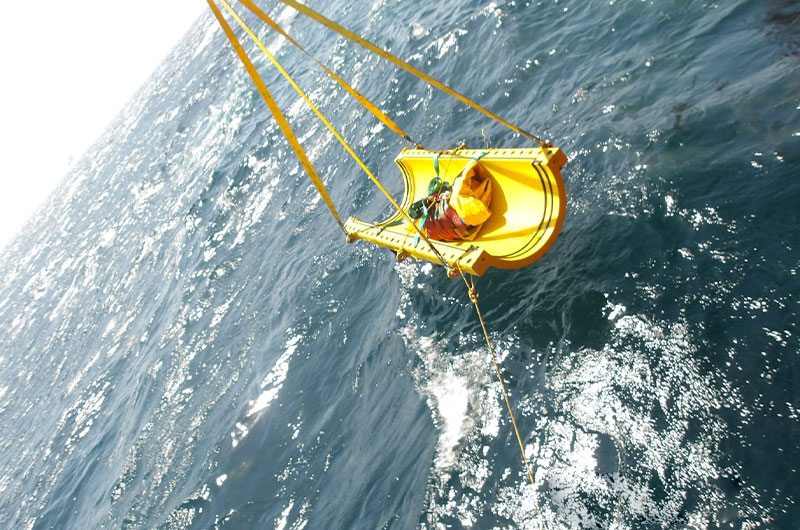

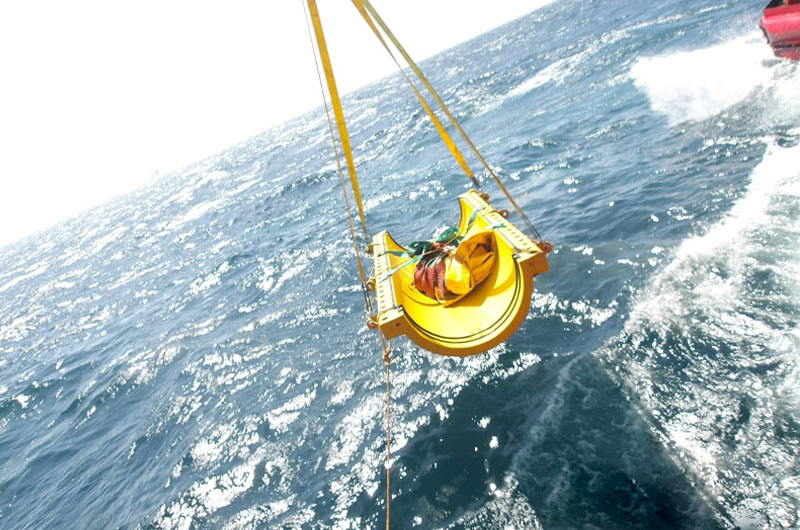

Note: VKVC extends support with certified Engineers available for offshore installation supervision, guaranteeing a seamless implementation process.
