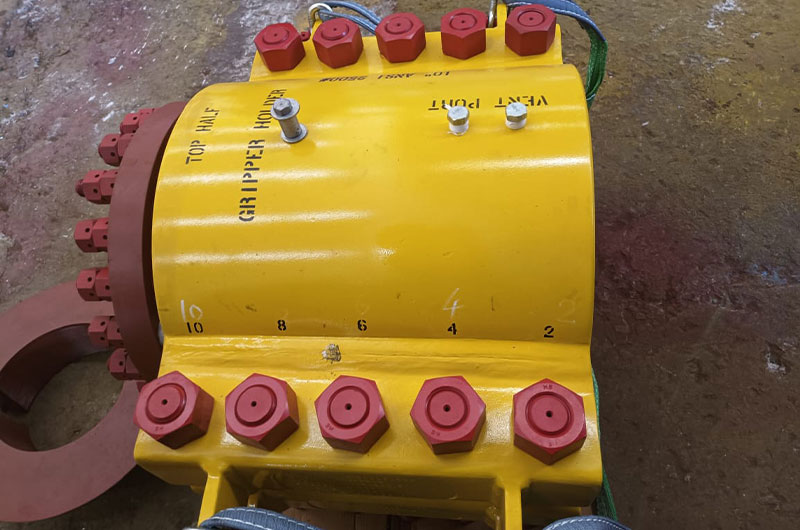

VKVC Riser leak repair clamp is a specialized device used to seal leaks in the riser sections of piping systems, particularly in offshore oil and gas operations. These clamps are designed to encapsulate the damaged area of the riser, restoring its structural integrity and preventing leaks without the need for cutting and replacing the affected section.
VKVC Riser repair clamps, which are customized to the riser’s outer diameter and the size of the damage. These clamps are designed for installation by ROVs and are suitable for both temporary and permanent applications.
| 1 | Design Code | ASME Sec-VIII Div-1, ASME “U”, “U2” Stamp |
|---|---|---|
| 2 | Design Analysis | Finite Element Analysis |
| 3 | Material of Construction | ASTM A105, ASTM A516 Gr.70 ASTM A36 OR ASTM A516 Gr.70 ASTM A 193 Gr. B7 and ASTM A 194 Gr. 2H |
| 4 | Seals | In – House Moulded HNBR/Fluro Elastomer/FFKM Other Material Options Available on Request. (AED certified) |
| 5 | Factory Acceptance Test | Pneumatic Body Test, Strip test, Vacuum test & Function Test Hydrotest. |
Note: VKVC extends support with certified Engineers available for offshore installation supervision, guaranteeing a seamless implementation process.
