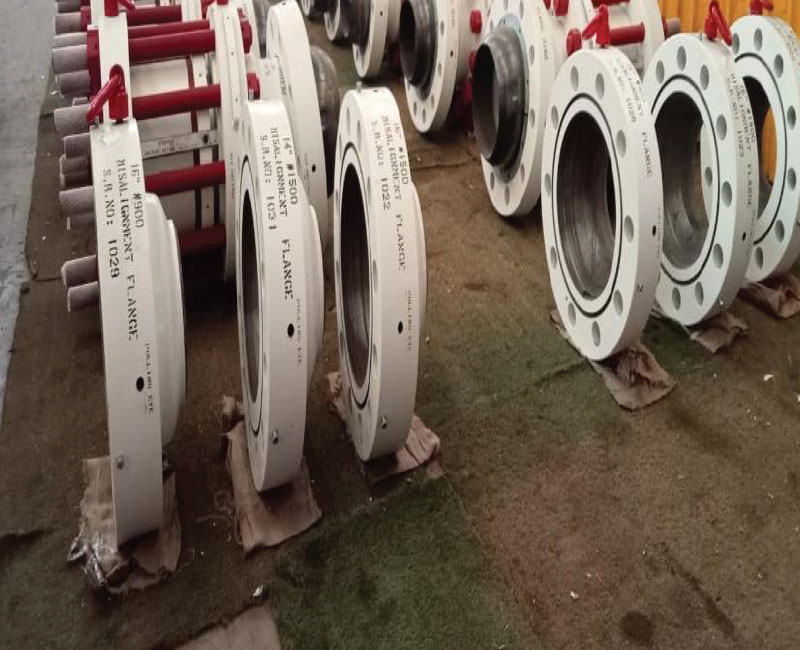

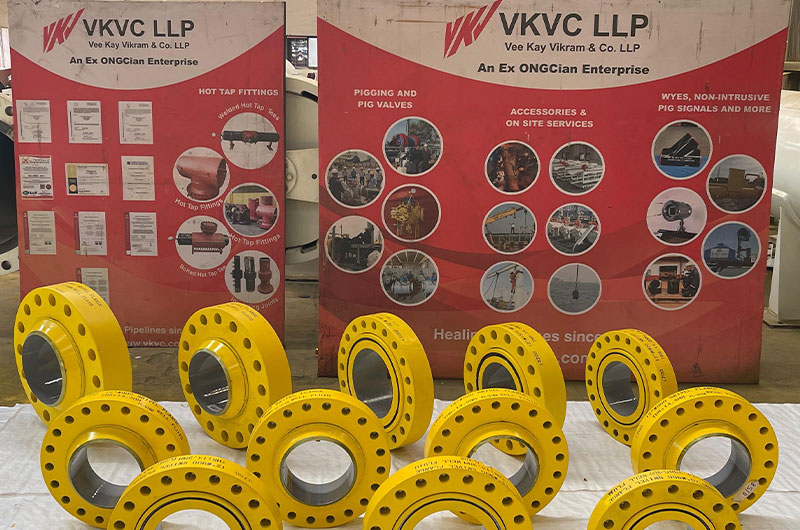

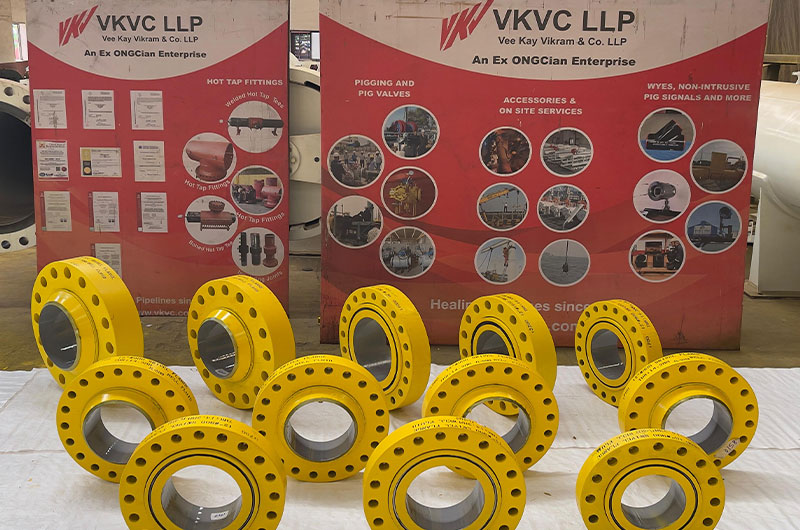

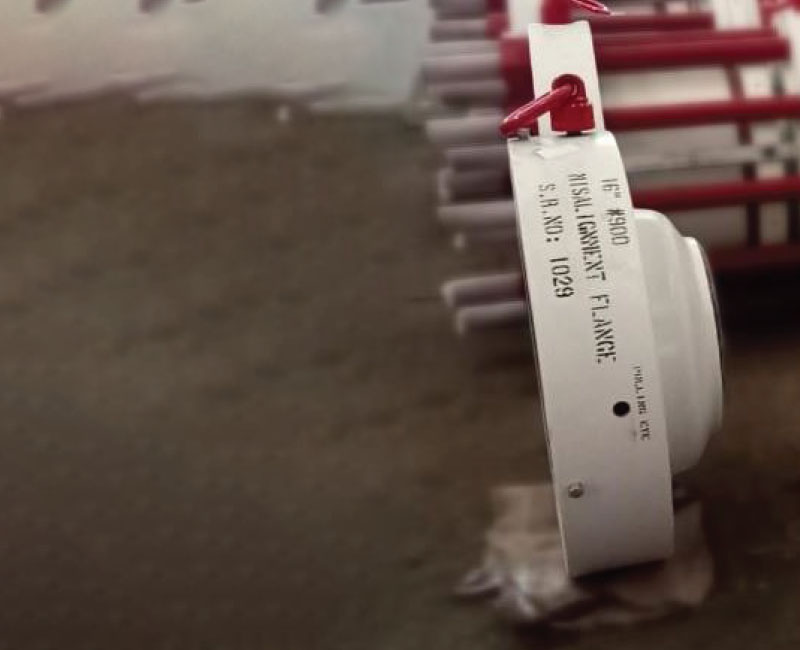

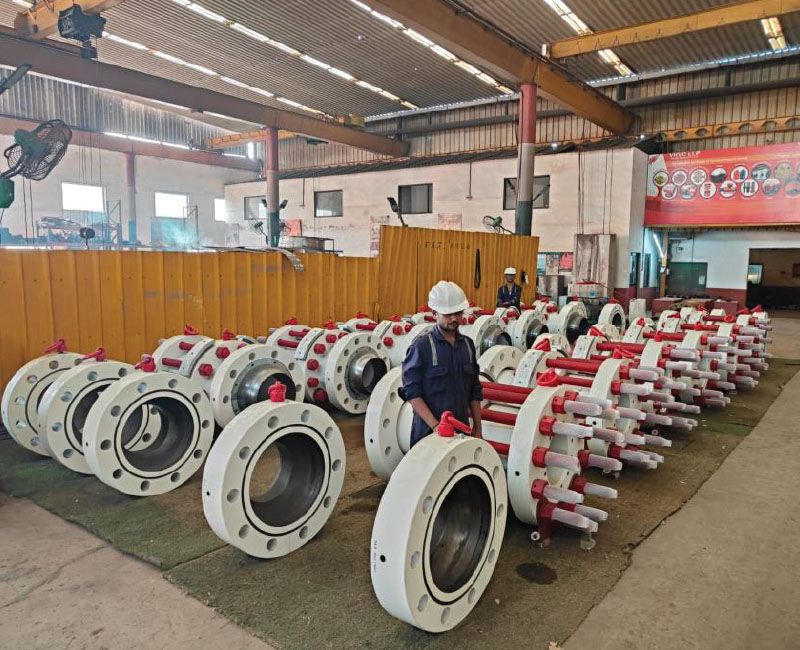

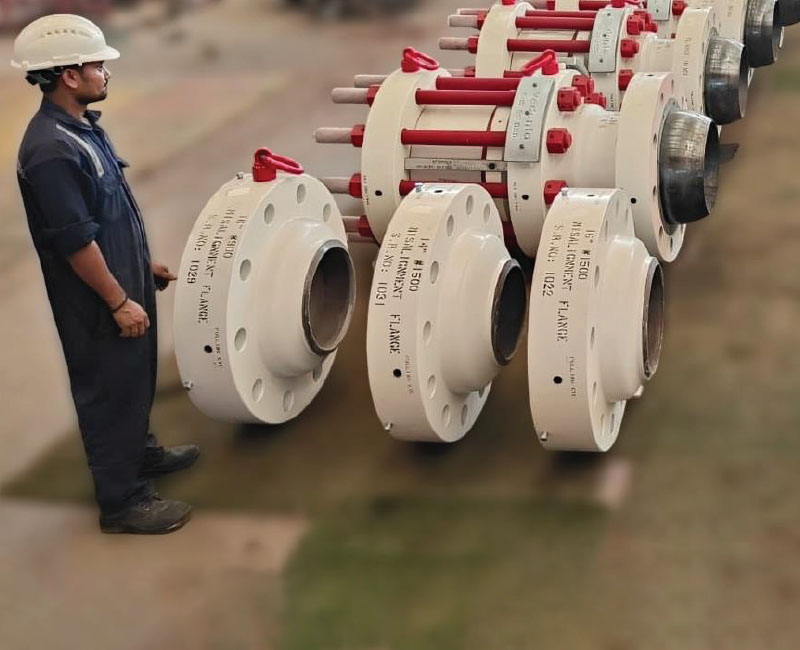

VKVC Misalignment Flange (MAF)
Sub-Sea Tie-ins thru flanges often have angular and rotational Misalignments. VKVC MAF provides a simple solution to both Mis alignments.
VKVC MAF rotate 360° and effectively turn 10°. They allow safe smooth Pig Passage.
VKVC MAF are factory assembled. VKVC API-6D Ball Valve certified unit provides full metal sealed rigid connections.
MAF significantly reduce the installation time and provide convenience for the installation procedures.
MAF are provided with a seal test facility to test the sealing prior to commissioning of Pipeline.
| 1 | Design Code | ASME SEC I & SEC II. (VKVC is ASME ‘U’ and ‘U2’ certified) NACE – MR – 01 – 75, DNV – FS101 |
|---|---|---|
| 2 | Design Analysis | Finite Element Analysis |
| 3 | Material of Construction | ASTM A 350 LF2/ASTM A694 F46-65 |
| 4 | Factory Acceptance Test | Test Rigs available for Sub-Sea application |
Note: VKVC certified Engineers available for offshore installation supervision.
