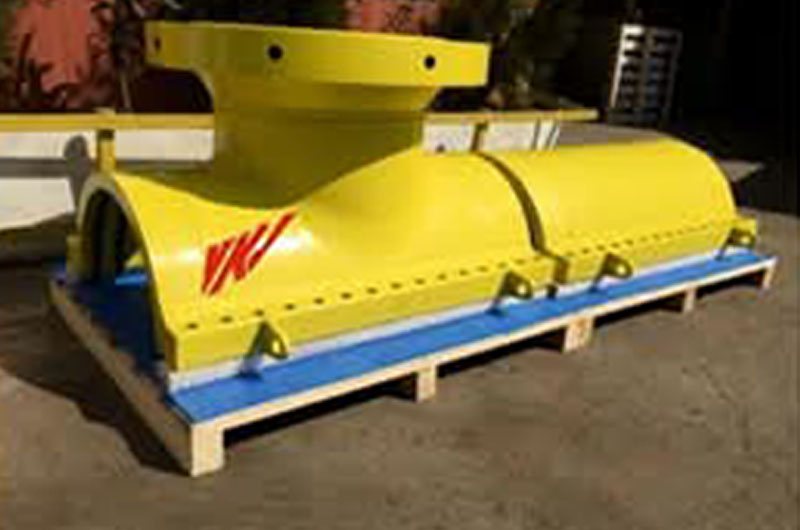

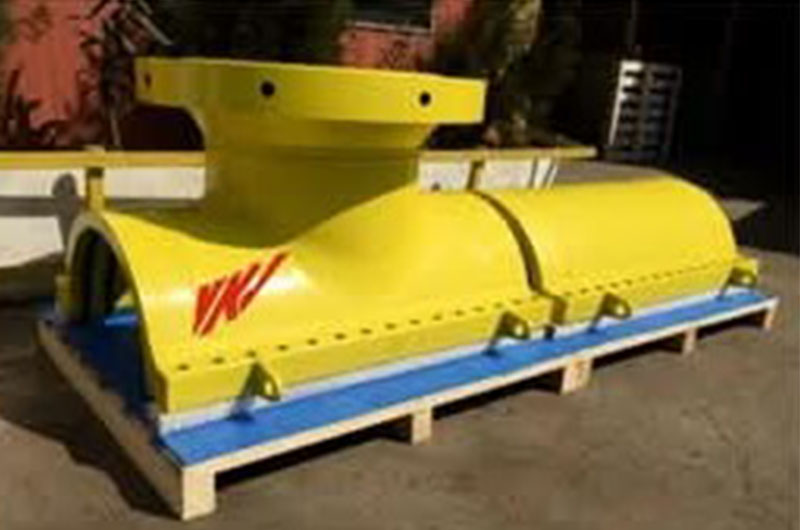

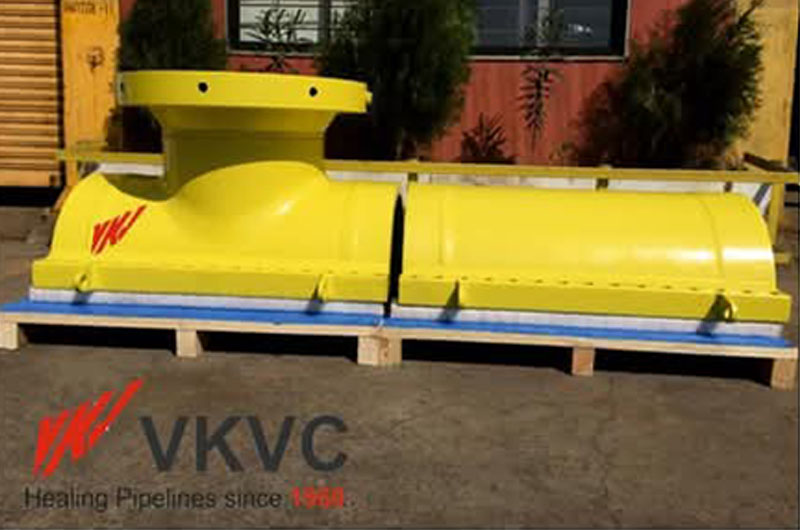

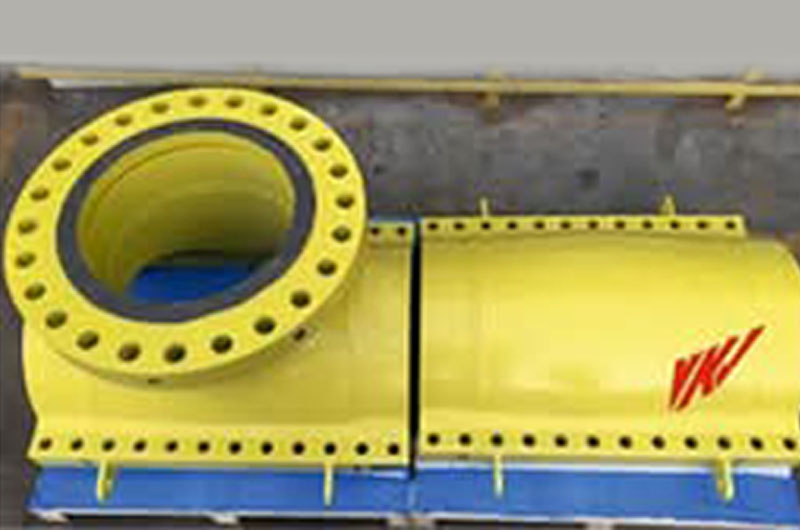

VKVC Mechanical bolted branch tee is a fitting used to create branch connections in piping systems without welding. It consists of a saddle-type fitting that clamps onto the main pipe, providing a secure and leak-resistant branch outlet. These tees are particularly useful in fire protection systems and other applications where adding branch connections without disrupting the main pipeline is essential. The advantage of no-welding and zero pipeline down time are key in making VKVC Mechanical Bolted Branch Tee an apt solution.
| 1 | Design Code | ASME Sec-VIII Div-1, ASME “U”, “U2” Stamp |
|---|---|---|
| 2 | Design Analysis | Finite Element Analysis |
| 3 | Material of Construction | ASTM A105, ASTM A516 Gr.70 ASTM A36 OR ASTM A516 Gr.70 ASTM A 193 Gr. B7 and ASTM A 194 Gr. 2H respectively, all PTFE coated. |
| 4 | Seals | In – House Moulded HNBR/Fluro Elastomer/FFKM Other Material Options Available on Request. (AED certified) |
| 5 | Factory Acceptance Test | Pneumatic Body Test, Strip test, Vacuum test & Function Test Hydrotest. |
Note: VKVC extends support with certified Engineers available for Offshore installation supervision, guaranteeing a seamless implementation process.
