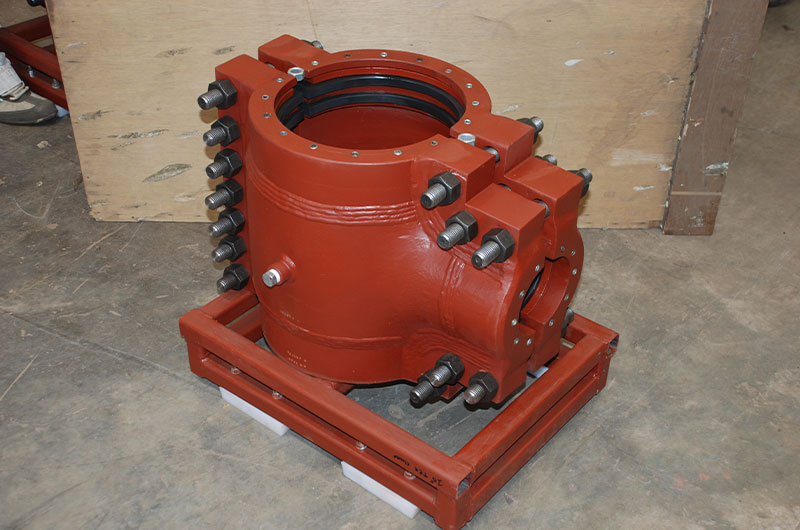

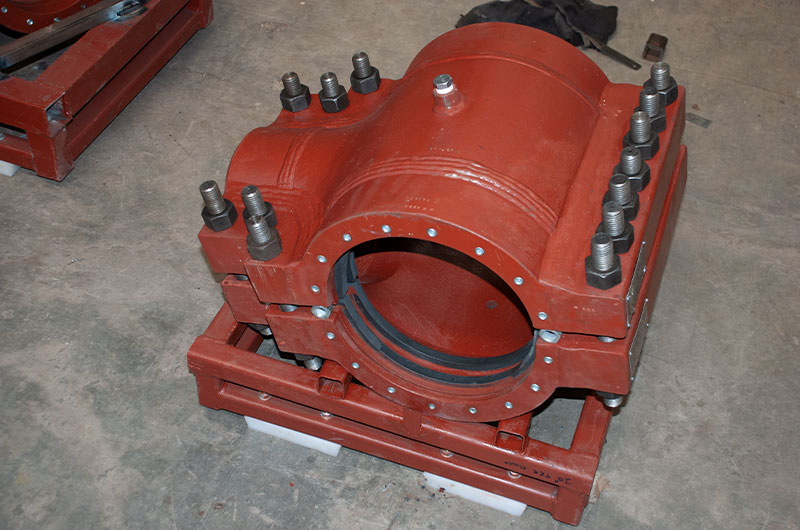

A Tee is a device, which has three female openings. These opening either distribute or decrease the flow of fluids or gases. Many a times these fittings develop leaks especially in the neck region. A Tee Leak Repair Clamp is used to curtail and fix any leakages in tees across various piping systems. These components can be fixed permanently or temporarily depending on various factors. Tee Repair Clamp has a circular metal collar, which clamps down the tee to the pipe. These clamps are very reliable and can be used to seal different pressure and temperature systems.
These clamps can be availed in a range of sizes and dimensions to meet the requirements of various applications.
| 1 | Design Code | ASME Sec-VIII Div-1, ASME “U”, “U2” Stamp |
|---|---|---|
| 2 | Design Analysis | Finite Element Analysis |
| 3 | Material of Construction | ASTM A105, ASTM A516 Gr.70 ASTM A36 OR ASTM A516 Gr.70 ASTM A 193 Gr. B7 and ASTM A 194 Gr. 2H respectively, all PTFE coated. |
| 4 | Seals | In – House Moulded HNBR/Fluro Elastomer/FFKM Other Material Options Available on Request. (AED certified) |
| 5 | Factory Acceptance Test | Pneumatic Body Test, Strip test, Vacuum test & Function Test Hydrotest. |
Note: VKVC extends support with certified Engineers available for onshore installation supervision, guaranteeing a seamless implementation process.
