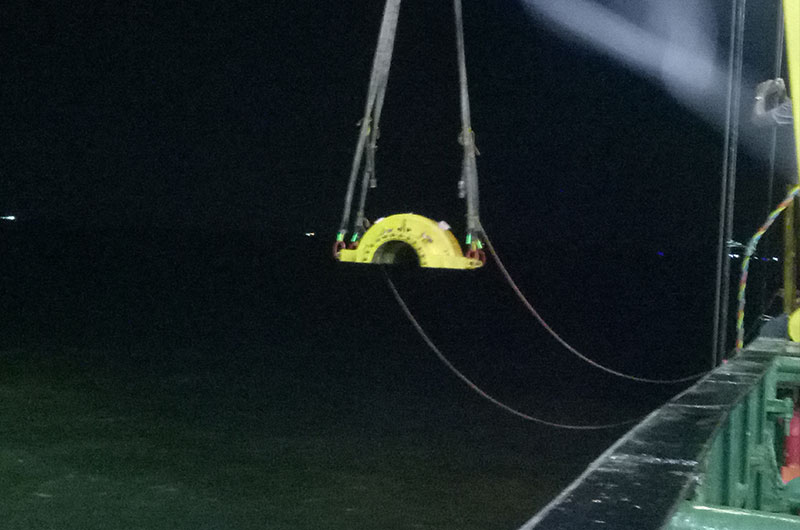

VKVC Structural Pipeline Repair Clamp are used for Repair of Oil and GAS Pipelines.
Pressure Containment Clamp are designed to be installed on damaged or leaking pipelines, encapsulating the defect within the clamp body. The pressure integrity is regained through Mechanical seals engaging on the non-leaking parent pipe. The Pressure Containment Clamp do not provide structural strength as the same is not required in their application.

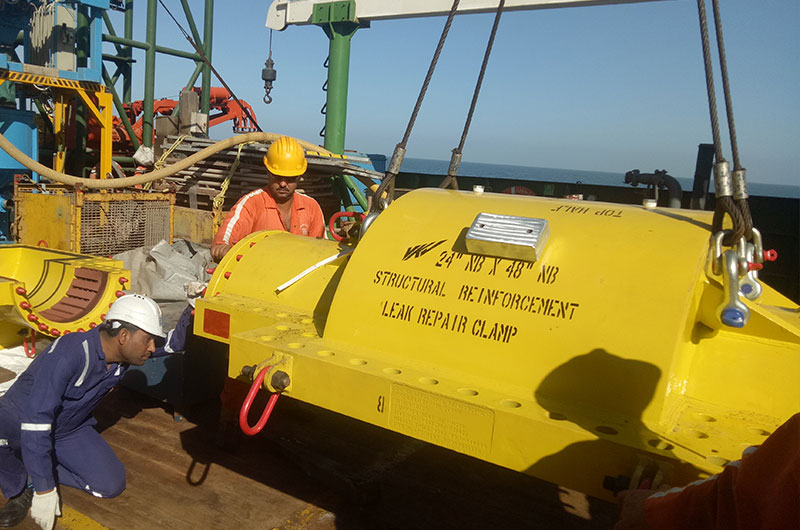

VKVC Structural Repair Clamp provide pressure containment and structural strength to the damaged and weak pipe. Pressure Containment Clamp have taper locks to provide axial restraint and structural integrity. The locks are configured as opposing sets to grip the pipe on either side of the defect. The lock sare designer to transfer the axial load of the pipe to the clamp body so allowing the clamp to withstand pipeline loads.
| 1 | Design Code | ASME Sec-VIII Div-1, ASME “U”, “U2” Stamp |
|---|---|---|
| 2 | Design Analysis | Finite Element Analysis |
| 3 | Material of Construction | ASTM A105, ASTM A516 Gr.70 ASTM A36 OR ASTM A516 Gr.70 ASTM A 193 Gr. B7 and ASTM A 194 Gr. 2H |
| 4 | Seals | In – House Moulded HNBR/Fluro Elastomer/FFKM Other Material Options Available on Request. (AED certified) |
| 5 | For Sub-Sea / Marine / Offshore Application | VKVC Provides Special Marine Coating and weld Overlay as Specified by Client |
Note: VKVC extends support with certified Engineers available for onshore installation supervision, guaranteeing a seamless implementation process.
