VKVC Liquid Filtration Systems remove solids from the liquid by allowing the liquid to flow through a permeable medium. The permeable medium stops the solids, allowing only the clean liquid to pass through. This is a vital process for many industries that depend on contaminant – free liquids.
The Filter/Strainer Separation Equipment can be provided with ASME ‘U’ & ‘U2’ Stamp.
Designed with Quick Opening Closure for easy access to change basket.
VKVC can manufacture filters and strainers in various materials – Carbon Steel, Stainless Steel, Alloy Steel or in special material for various types of applications.
| 1 | Design Code | ASME Sec-VIII Div-1, ASME “U”, “U2” Stamp |
|---|---|---|
| 2 | Design Analysis | Finite Element Analysis, PV Elite. |
| 3 | Material of Construction | ASTM A/SA 350 LF2 CL.1 OR 2, ASTM A/SA 105, ASTM A/SA 516 GR.70 ASTM A694 F GR.42/46/52/56/60/65/70 SS GR 304L OR 316L |
| 4 | Seals | In – House Moulded HNBR/Fluro Elastomer/FFKM (AED certified) |
| 5 | Factory Acceptance Test | Pneumatic Body Test, Strip test, Vacuum test & Function Test. |
| 6 | For Sub-Sea / Marine / Offshore Application | VKVC Provides Special Marine Coating and weld Overlay as Specified by Client |
| 7 | Closure Orientation | Horizontal & Vertical |

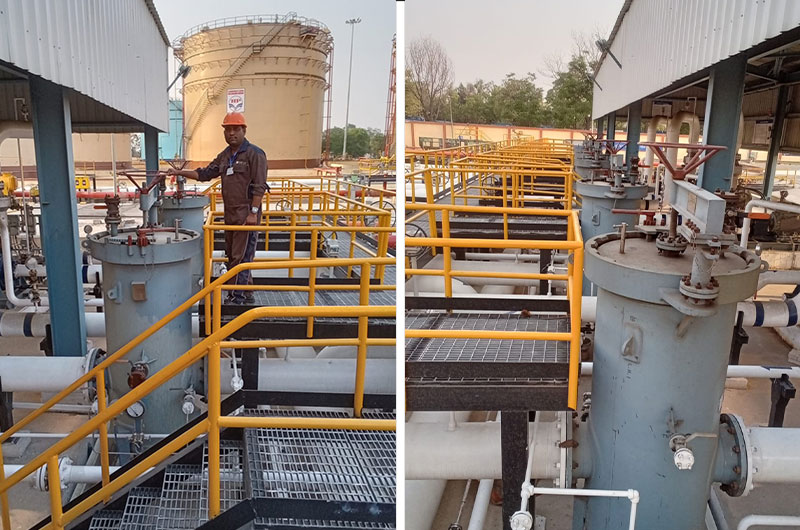

Note: VKVC extends support with certified Engineers available for onshore installation supervision, guaranteeing a seamless implementation process.
